L293D Motor Driver Shield V1

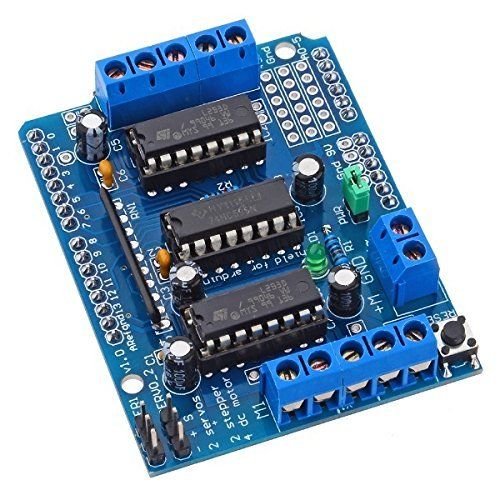

What is the L293D motor driver shield?

The L293D motor driver shield is a stackable board for the Arduino Uno that lets you run up to four DC motors, or two stepper motors, plus two hobby servos, from one board. It carries two L293D dual H-bridge chips and a 74HC595 shift register. It is a clone of the original Adafruit Motor Shield (now called V1), which is why the same Adafruit library works with almost every one you can buy.

Two things surprise people the first time. First, you cannot drive the motors with plain digitalWrite() calls. The direction signals go through the shift register, so the Arduino has to clock a byte into it every time a motor changes direction. The Adafruit Motor Shield library (AFMotor) hides all of that. Second, the shield takes over most of the Uno's pins: up to eight digital pins are claimed as soon as you use a motor (four PWM pins and four shift-register pins), plus pins 9 and 10 for the servo headers. Plan your sensors around what is left.

This page covers what the shield is, its pins, how to power it without damaging anything, working code for DC motors, steppers and servos on an Arduino Uno, and how to drive the same shield from an ESP32. The ESP32 needs a different approach, because the AFMotor library only runs on AVR boards.

Which Arduino pins the shield uses

The shield leaves very little free, so check this table before adding sensors.

Arduino pin	Used for	Notes
D11	Motor 1 PWM (speed)	Also stepper 1
D3	Motor 2 PWM	Also stepper 1
D6	Motor 3 PWM	Also stepper 2. Some vendor documents list D5 and D6 the other way round for M3 and M4
D5	Motor 4 PWM	Also stepper 2
D4	74HC595 clock	Needed for any motor
D8	74HC595 data	Needed for any motor
D12	74HC595 latch	Needed for any motor
D7	74HC595 output enable (active low)	Needed for any motor
D9, D10	Servo headers	Only used if you attach a servo. Which header is numbered 1 or 2 varies between makers
D0, D1	Serial (USB)	Free, but shared with the USB serial port
D2, D13	Free	D13 is also the onboard LED
A0 to A5	Free	Broken out on the shield. A4 and A5 are the I2C pins

Two practical consequences. Hardware SPI is not available, because D11 and D12 are taken, so SPI devices such as an SD card module or an RFID reader cannot use the hardware SPI pins. I2C on A4 and A5 works fine, so I2C sensors and small displays are the natural companions for this shield.

Powering the shield correctly

Most problems with this shield are power problems, not code problems.

Use a separate motor supply. Connect the battery or adapter to the EXT_PWR screw terminal, with the right polarity and within your shield's voltage rating. The motors cannot run from USB.

Know what the PWR jumper does. On most clones a jumper marked PWR joins EXT_PWR to the Arduino's VIN pin. With it fitted, one supply powers both the motors and the Arduino. Remove it while you develop with the Arduino on USB, and whenever the motor supply is noisy or higher than the Arduino's regulator should see.

Expect to lose 2 to 3 V. The L293D uses bipolar output stages, so a 6 V supply gives the motor roughly 3 to 4 V. Choose the supply for what the motor needs plus that loss, without exceeding the shield's rating. This is the main reason motors run slower than people expect on this driver.

Respect 0.6 A per channel. Each channel is rated for 0.6 A continuous and 1.2 A peak. Small yellow TT gear motors are usually fine when running freely, but they can pull more than 0.6 A when they stall against an obstacle. If a chip is too hot to touch, you are over the limit. Use a TB6612FNG or L298N for bigger loads.

Decouple the motors. Solder a 100 nF ceramic capacitor across each motor's terminals, and add a 100 to 470 µF electrolytic across EXT_PWR close to the shield. This reduces the electrical noise that resets Arduinos and upsets sensors.

Servos draw from the Arduino's regulator. The servo headers take 5 V from the Arduino. Small servos like the SG90 are fine. Larger servos can brown out the board, so power them from their own 5 V supply and disconnect the header's 5 V line (check your board for the trace or pin to cut).

Controlling DC motors with AFMotor

AF_DCMotor motor(1); creates a motor object for terminals M1 (use 2, 3 or 4 for the others). Three calls do almost everything:

• setSpeed(0 to 255) sets the PWM duty cycle, which is the motor speed.
• run(FORWARD) and run(BACKWARD) set the direction.
• run(RELEASE) cuts power so the motor coasts to a stop. The library has no true brake.

A few things worth knowing:

• Low speed values do not turn the motor. Below roughly 80 to 120 out of 255, most hobby motors just hum, because the supply after the 2 to 3 V loss cannot overcome friction. Start your ramps above that.
• PWM frequency. The second constructor argument picks the PWM frequency for motors 1 and 2 (for example AF_DCMotor motor(1, MOTOR12_1KHZ);). Motors 3 and 4 use Timer 0, which the Arduino core also uses for millis() and delay(), so leave their rate alone.
• Each motor is independent. Different speeds and directions on different motors work at the same time.

Stepper motors

The shield drives two stepper motors. AF_Stepper(stepsPerRevolution, port) uses port 1 for the M1 and M2 terminals (one stepper) and port 2 for M3 and M4. A 1.8 degree motor has 200 steps per revolution.

step(steps, direction, style) takes one of four styles: SINGLE energises one coil at a time, DOUBLE energises two coils for more torque, INTERLEAVE alternates between them for half steps (finer motion, so you need twice as many steps per revolution), and MICROSTEP gives smoother motion. step() blocks until the move is finished. For non-blocking motion with acceleration, use the AccelStepper library, which can drive a motor through single-step calls.

Check the current rating first. Each coil sits on a 0.6 A channel, so small steppers rated up to about 0.5 A per phase suit this shield. A typical NEMA 17 draws 1.5 A or more per phase and is too much for an L293D. Use an A4988 or DRV8825 driver for those.

Servos on the shield

The two servo headers connect straight to Arduino pins 9 and 10, so the standard Servo library does the job and AFMotor is not involved. Which header is labelled SERVO_1 or SERVO_2 varies between manufacturers, so test both.

Remember that the servo headers draw power from the Arduino's 5 V regulator. One or two small servos are fine. A servo that jitters, or an Arduino that resets when the servo moves, is a sign that it needs its own 5 V supply.

Boards that cannot use the AFMotor library

The original V1 AFMotor library targets classic AVR boards such as the Arduino Uno R3 and Mega and uses AVR-specific timer setup. Do not assume it compiles or behaves correctly on the ESP32 or Uno R4. For those boards, use a compatible alternative: the custom shift-register/PWM approach below for the ESP32, or a driver/library designed for the Uno R4. The Uno R4 path has not been validated in this guide.

Using the shield with an ESP32

The V1 shield is designed around Uno-style pin labels and 5 V logic. It does not plug into a standard ESP32 DevKit as a working drop-in shield, and the AVR AFMotor library is not the ESP32 driver. The advanced wiring below recreates the shield's control signals from ESP32 GPIO and PWM.

For a direct ESP32 connection, use jumper wires and buffer all four 74HC595 control lines (data, clock, latch and output-enable) through a 5 V-powered 74AHCT125 or 74HCT245. A 3.3 V ESP32 HIGH is not guaranteed to meet the HIGH threshold of a 5 V 74HC input. The L293D enable inputs can accept the ESP32's 3.3 V PWM HIGH level, but the shift-register control inputs need proper level translation. Keep ESP32 GPIO pins on the signal side only—never connect a shield's 5 V output to an ESP32 GPIO.

Shield pin	Function	ESP32 GPIO
D8	74HC595 data	GPIO25, through 5 V-powered level translator
D4	74HC595 clock	GPIO26, through level translator
D12	74HC595 latch	GPIO27, through level translator
D7	74HC595 output enable (active LOW)	GPIO33, through level translator
D11	Motor 1 PWM	GPIO16
D3	Motor 2 PWM	GPIO17
D6	Motor 3 PWM	GPIO19
D5	Motor 4 PWM	GPIO18
D9 servo-header signal	Servo position signal	GPIO21

These are example pins for a classic ESP32 DevKit V1. Verify the pinout for ESP32-S3, C3 and other boards before wiring; GPIO availability differs.

Power rules: use a regulated 5 V supply for the shield's logic rail and a motor supply on EXT_PWR that stays within the exact shield's rating. Keep these rails distinct and join their grounds with ESP32 ground. Do not tie two independent 5 V outputs together or back-feed a USB-powered ESP32. Power servos from a supply rated for their startup/stall current; isolate the servo header's +5 V line when using a separate servo supply. Remove the shield PWR jumper for standalone wiring and verify the clone's power path before connecting supplies.

ESP32 sketch: library-free motor control

This sketch recreates what AFMotor does. motorRun(motor, command, speed) works like the AFMotor calls, with a command of forward, backward, brake or release. It uses the ESP32 Arduino core 3.x PWM functions (ledcAttach and ledcWrite).

How it works. The 74HC595 holds eight direction bits, two per motor (one for each side of the H-bridge). motorRun() sets the right two bits, shifts the whole byte out, and pulses the latch. The PWM pin for that motor then sets the speed. Forward means side A high and side B low, backward is the opposite, brake pulls both sides low with the enable fully on, and release switches the enable off so the motor coasts. The bit positions in BIT_A and BIT_B come from the shield's wiring and match the ones AFMotor uses.

Older ESP32 core (2.x). Replace ledcAttach(pin, freq, bits) and ledcWrite(pin, duty) with ledcSetup(channel, freq, bits), ledcAttachPin(pin, channel) and ledcWrite(channel, duty), using one channel per motor.

Tuning. Try PWM frequencies between 1 kHz and 20 kHz. Lower frequencies give more torque at low speed but can whine; higher ones are quieter. If M3 and M4 respond the wrong way round, swap their entries in PIN_PWM (see the note on D5 and D6 above).

Stepper motor on the ESP32

A bipolar stepper uses two motor channels, one per coil. This function steps a stepper on M1 and M2 using the motorRun() helper from the sketch above. It uses full steps with both coils on, so use a small stepper with a coil current under 0.6 A.

Servo control when the shield is wired to an ESP32

The V1 shield's servo headers are simple signal, +5 V and ground connections; AFMotor does not control them. With the shield wired to a standalone ESP32, run a jumper from an ESP32 GPIO to the signal pin of one servo header (GPIO21 is used below). The servo's signal wire must never be connected to a 5 V rail.

Power the servo from a regulated 5 V supply sized for its startup and stall current. Share ground with the ESP32 and shield. If that servo supply is separate from the shield's 5 V logic rail, isolate the header's +5 V connection so the supplies are not tied together. Do not rely on the ESP32 board regulator to power a loaded servo.

The snippet below is for the ESP32 Arduino core 3.x and uses LEDC PWM at 50 Hz, alongside the motor PWM pins in the preceding shield sketch. It is a position command, not closed-loop confirmation that the horn physically reached the requested angle; calibrate the pulse range for the exact servo.

Wi-Fi remote control from a phone

The ESP32's biggest advantage over the Uno here is built-in Wi-Fi. This version of the sketch serves a small control page. Replace setup() and loop() in the sketch above with the code below, and keep everything else. Motors 1 and 2 are the left and right wheels. A failsafe stops the motors if no command arrives for 800 ms, so a dropped connection cannot leave the robot running.

ESP32 with a bare L293D chip (no shield)

If you do not already own the shield, the simplest ESP32 setup is the L293D chip on a breadboard. There is no shift register, and the chip's inputs accept 3.3 V logic. The chip's logic supply (pin 16) needs 4.5 V or more, so give it 5 V and not 3.3 V.

L293D pin	Name	Connect to
1	1,2EN (enable, motor A)	ESP32 GPIO16 (PWM)
2	1A	ESP32 GPIO17
3	1Y	Motor A terminal 1
4, 5	GND	GND
6	2Y	Motor A terminal 2
7	2A	ESP32 GPIO18
8	VCC2	Motor supply (within the motor's rating)
9	3,4EN (enable, motor B)	ESP32 GPIO19 (PWM)
10	3A	ESP32 GPIO21
11	3Y	Motor B terminal 1
12, 13	GND	GND
14	4Y	Motor B terminal 2
15	4A	ESP32 GPIO22
16	VCC1	5 V logic supply

Join all grounds: the ESP32, the chip and the motor supply. The 100 nF and 100 to 470 µF decoupling advice from the power section applies here too.

Troubleshooting

Symptom	Likely cause	Fix
Nothing moves, but the Arduino runs	No motor supply on EXT_PWR, or it is switched off	Connect and switch on EXT_PWR. USB cannot drive motors
Arduino resets when a motor starts	Supply sag or electrical noise	Use a stronger supply, add 100 nF across each motor and 100 to 470 µF on EXT_PWR, remove the PWR jumper and power the Arduino separately
Motor hums but does not turn	Speed value too low, or too little voltage after the 2 to 3 V driver loss	Raise setSpeed() and the supply voltage
Motor runs the wrong way	Motor wires swapped	Swap the two wires, or swap FORWARD and BACKWARD in code
M3 and M4 respond the wrong way round	Vendor documents disagree about D5 and D6	Test, then swap the motor numbers in your code
AFMotor.h: No such file or directory	Library not installed	Install the Adafruit Motor Shield library (V1)
Compile errors on ESP32 or Uno R4	AFMotor is AVR-only	Use the library-free code in the ESP32 section
L293D too hot to touch	Over 0.6 A, often from a stalled motor	Use a smaller motor or a TB6612FNG / L298N
Servo jitters or the board resets	Servo powered from the Arduino regulator	Give the servo its own 5 V supply
ESP32: motors ignore commands or act randomly	3.3 V too weak for the 74HC595, a missing common ground, or OE not low	Add the level shifter, join all grounds, and drive D7 low
ESP32: wrong motor moves	Wiring order of the PWM pins	Check the GPIO table against your wiring and the PIN_PWM array

L293D shield or something else?

Driver	Current per channel	Voltage loss	Best for
L293D shield (this page)	0.6 A	About 2 to 3 V	Learning, small toy motors, four motors on one Uno
L298N module	2 A	About 1.5 to 2 V	Bigger brushed motors where efficiency is not critical
TB6612FNG	1.2 A (3.2 A peak)	Low	Battery robots and small motors that need real torque
DRV8833	1.5 A (2 A peak)	Low	Compact low-voltage robots

The L293D shield is a good first motor driver, because the library makes motors, steppers and servos trivial. When you run into its limits (a motor that runs weakly on battery power, or a chip that gets hot), move to a MOSFET driver.

What to build with it

• A two-wheel or four-wheel robot car. Four motors on one Uno is what this shield is best at, and the free A0 to A5 pins take line-follower or ultrasonic sensors.
• A Wi-Fi controlled car. Use the ESP32 sketch above and add a camera board or sensors.
• A pan and tilt mount. Two servos on the servo headers.
• A small conveyor or turntable. A stepper on port 1 or 2, with a limit switch on a free pin.
• A motorised blind or slider. A small gear motor with end stops.

Frequently asked questions

Can I run the shield from USB power alone? The Arduino will run, but the motors will not, and trying to power them from USB can reset the board. Use the EXT_PWR terminal.

Why does my motor run slower than the battery voltage suggests? The L293D loses roughly 2 to 3 V in its output stages, so a motor on a 6 V supply sees about 3 to 4 V. A MOSFET driver such as the TB6612FNG loses far less.

Can I connect the shield to an ESP32 directly, like an Uno shield? Not directly. The pins do not line up with Uno pin numbers and the logic is 5 V. Wire it with jumper wires as shown above. Some ESP32 boards use the Uno shield layout, but their header labels often do not match the GPIO the AFMotor code expects, so check the board's pinout and use the library-free code with your own pin table.

Do I need the level shifter on the ESP32? The PWM lines connect directly. The 74HC595 lines (data, clock, latch) are the ones where 3.3 V is borderline, so a 74AHCT125 is recommended. Some setups work without it, but it is the first thing to try when motors behave randomly.

Can I use the free pins for sensors? Yes. A0 to A5 are broken out on the shield, and D2 and D13 are free. Avoid hardware SPI devices, since D11 and D12 are in use.

Does it work with the Arduino Mega? The Adafruit library supports the Mega and the shield stacks on it. Check the library notes before relying on specific pins for other devices.
