MPU-6050 6-Axis Accelerometer and Gyroscope

MPU-6050 practical reference

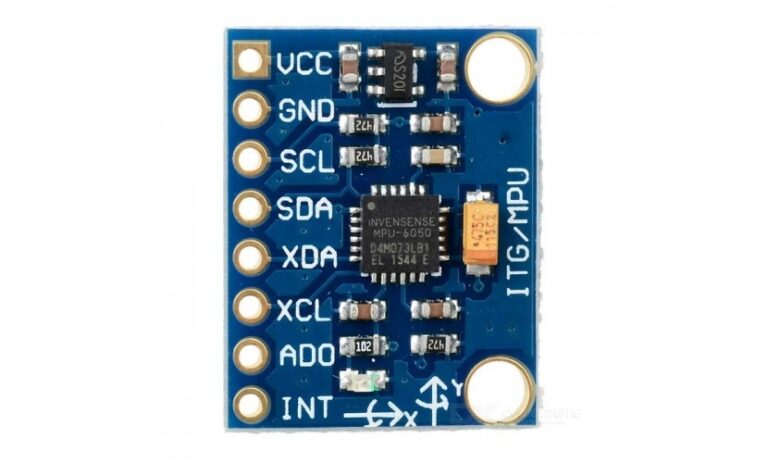

The MPU-6050 is a six-axis inertial measurement unit (IMU) that combines a 3-axis accelerometer and a 3-axis gyroscope in one chip. The common GY-521 breakout exposes the sensor over I²C and usually includes supporting components such as a voltage regulator and pull-up resistors. The chip also includes a temperature sensor.

Use the accelerometer to measure acceleration (including gravity), the gyroscope to measure angular velocity, and I²C to read the data from a microcontroller. These raw readings do not automatically provide reliable yaw, pitch and roll; orientation estimates require calculations and usually sensor fusion.

Accelerometer vs. gyroscope

• Accelerometer (X, Y, Z): reports acceleration along three axes. When stationary, gravity contributes to the reading, which can help estimate tilt. Motion and vibration also affect the result.
• Gyroscope (X, Y, Z): reports angular velocity, typically in degrees per second or radians per second. Integrating these values estimates rotation but accumulates drift over time.
• Temperature: the chip's internal temperature measurement can help characterize the sensor, but it is not a calibrated ambient-temperature probe.

The MPU-6050 is useful for robot balancing, gesture experiments, vibration monitoring, motion logging and learning about inertial sensing. It is not a GPS, compass or direct absolute-heading sensor.

I²C address and communication

The default 7-bit address is usually 0x68. If the AD0 pin is driven HIGH, the address commonly becomes 0x69. Some example sketches and libraries use the 7-bit address, not the shifted 8-bit read/write address.

I²C requires SDA, SCL, a shared ground and suitable pull-up resistors. Many GY-521 boards already include pull-ups, but clones may connect them to different rails. Before connecting to an ESP32 or another 3.3 V MCU, verify that SDA and SCL are never pulled up to 5 V. Use a proper bidirectional I²C level shifter if the breakout's logic levels are incompatible.

Common projects

• Self-balancing robot: combine accelerometer and gyroscope data with a control algorithm and motor driver.
• Gesture controller: detect tilt or motion patterns and map them to commands.
• Vibration logger: record acceleration changes over time to compare operating conditions.
• Motion-controlled interface: use orientation estimates to trigger menu actions or control a small game.
• Data logger: send readings to serial output, an SD card or a wireless dashboard.

Start by confirming that the sensor responds over I²C, then collect stable readings while the board is stationary. Add filtering or sensor fusion only after the raw data makes sense.

Best practices

1. Mount it firmly. Loose wiring or a flexing board can appear as vibration or motion.
2. Keep the I²C wires short. Long leads and noisy motor wiring can cause communication errors.
3. Check logic levels. This matters especially when pairing a 5 V Arduino with a 3.3 V sensor breakout or an ESP32.
4. Use sensible ranges. A wider full-scale range avoids clipping but reduces sensitivity for small movements.
5. Calibrate when needed. Gyroscope bias and accelerometer offsets vary between modules; collect stationary samples and account for offsets in software.
6. Do not call raw gyro integration absolute orientation. Gyroscope bias accumulates; use an appropriate fusion method if you need stable attitude estimates.
7. Avoid unsupported library assumptions. Use the board-specific I²C pins and verify the library version and address configuration.

Troubleshooting

Symptom	Likely cause	Check
Sensor not found	Wrong address, wiring, power or ground	Run an I²C scanner; check SDA/SCL and try 0x68/0x69 as appropriate.
Readings stay at zero	Sensor not initialized or incorrect bus pins	Confirm mpu.begin() succeeds and use the correct Wire pins.
ESP32 resets or bus hangs	Incorrect logic voltage or wiring noise	Verify SDA/SCL pull-ups are 3.3 V-safe and shorten wires.
Accelerometer values change at rest	Board tilt, vibration or offsets	Place it still on a level surface and inspect all axes; gravity should be visible on one axis.
Gyroscope never reads exactly zero	Normal bias and noise	Average stationary samples and calibrate offsets if needed.
Values clip during movement	Selected full-scale range is too small	Choose a wider accelerometer or gyroscope range.

Frequently asked questions

Does the MPU-6050 measure yaw, pitch and roll directly? No. It reports acceleration and angular velocity. Orientation must be estimated in software; yaw especially drifts without an external reference such as a magnetometer.

Is a library required? No library is strictly required for raw I²C access, but the Adafruit MPU6050 library makes beginner projects simpler.

What is the default I²C address? Usually 0x68, with 0x69 commonly selected by setting AD0 HIGH.

Can I connect it to an ESP32? Yes, with compatible power and 3.3 V-safe I²C lines. Do not assume a breakout's VCC input rating also guarantees 5 V-safe SDA/SCL.

Is the simulator a full IMU emulator? No. The SolderHub project is a wiring and orientation teaching aid. It does not emulate real I²C register transactions, gyroscope drift or a full sensor-fusion algorithm.

Key specifications

• Sensor type: 6-axis IMU: 3-axis accelerometer plus 3-axis gyroscope.
• Interface: I²C; commonly address 0x68, or 0x69 when AD0 is HIGH.
• Accelerometer range: Selectable ±2 g, ±4 g, ±8 g, or ±16 g.
• Gyroscope range: Selectable ±250, ±500, ±1000, or ±2000 degrees/second.
• Supply / logic: Bare chip is a low-voltage device; breakout power and logic-level compatibility depend on the specific board. Verify before connecting to 5 V logic.
• Orientation output: Raw acceleration and angular velocity; pitch/roll/yaw require software estimation and sensor fusion.

Pinout and connection notes

The MPU-6050 chip itself is not 5 V tolerant. Common GY-521 breakouts may include a regulator and pull-ups, but clone layouts vary. Verify SDA/SCL pull-up voltage and module supply before wiring to an Uno or ESP32.

• Power: Supply according to the exact breakout documentation; do not assume all GY-521 clones have identical regulation.
• Ground: Connect to the controller ground.
• I²C data: Connect to the controller SDA pin and ensure pull-ups do not exceed the sensor logic voltage.
• I²C clock: Connect to the controller SCL pin and ensure pull-ups do not exceed the sensor logic voltage.
• Address select: Typically selects 0x68 when LOW and 0x69 when HIGH.
• Interrupt: Optional interrupt output; use only if the firmware configures it.
• Auxiliary I²C: Auxiliary sensor bus pins; not required for basic host I²C readings.

Integration checklist

1. Confirm the exact part number and breakout-board revision.
2. Verify supply voltage, current demand, logic levels, and signal direction against the datasheet.
3. Check controller pin assignments and bus address or interface mode against the example code.
4. Power up with external loads disconnected, then test signals before full integration.
5. If readings or communication fail, check power and ground first, then pin mapping, interface settings, and library initialization.

Troubleshooting and reproducibility

Record the board used, wiring, library/version, supply arrangement, and measured behavior. Use the selected board-specific wiring example as the source of truth. Never assume visually similar modules share identical voltage tolerance or pin order.
